Dux Ring of MPMDS Series
Dux Series in anulum mpmds series maxime serves ut a duce et maxime usus est ad Pistons et Piston Annulorum in Hydraulicarum cylindri et pneumatic cylindra, ludens et supporting et guiding partes.
Mitte Inquisitionem
depictio producti
Rectus anulum, etiam dicitur a firmamentum anulus, est pars usus est in Piston aut Piston virga Hydraulicarum cylindri vel Gas cylindri ad suscipere motus de piston aut piston virga. Potest ne Piston aut Piston virga a directo contactus et frictio cum cylindri corpus per motus, et protegat cylindri corpus et piston aut piston virga a damnum. Et communiter propter materiam ad dux anulos est polyoxymethylene (Pom).
Sulcus superficies characteres
|
Consumo |
Rtmax (unum) |
UK (um) |
|
Slidingsurface |
≤2.5 |
0,05 - 0.3 |
|
Groovertom |
≤10 |
≤1.6 |
|
Grooveside |
≤15 |
≤3 |

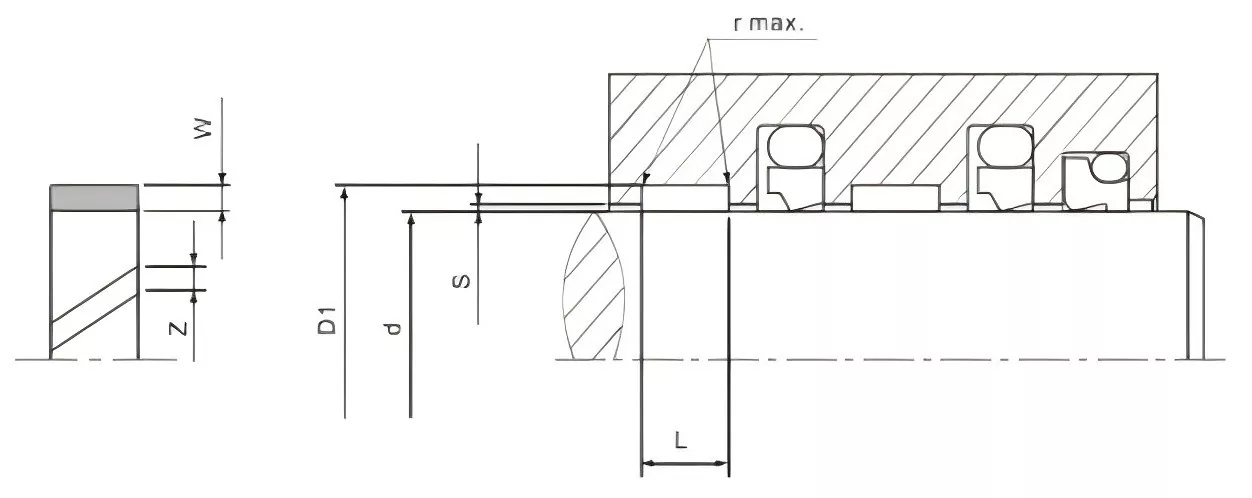

Specificatio
|
Rod |
Fundum diameter |
Sulcus width |
PRAETERITUS |
Dux Orbis Clearance |
|
D F8 / H9 |
D1 H8 |
L + 0,2 |
W |
Z |
|
8-20.0 |
D +.10 |
2.5 |
1.55 |
1-2 |
|
10-50,0 |
D +.10 |
4 |
1.55 |
1-3 |
|
15-140.0 |
D +5.00 |
5.6 |
2.5 |
2-5 |
|
20-220.0 |
D +5.00 |
9.7 |
2.5 |
2-9 |
|
80-400.0 |
D +5.00 |
15 |
2.5 |
4-15 |
|
200-999.9 |
D +5.00 |
25 |
2.5 |
8-33 |
|
1000-4200.0 |
D +5.00 |
25 |
2.5 |
33-134 |
|
280-999.9 |
d +8.00 |
25 |
4 |
10-33 |
|
1000-2200.0 |
d +8.00 |
25 |
4 |
33-70 |
Limit Clearance S
|
Cylindrus diameter |
Smin. |
SMA. |
D |
Rmax. |
|
8-20 |
0.20 |
0.30 |
8-250 |
0.2 |
|
20-100 |
0.25 |
0.40 |
> CCL |
0.4 |
|
101-250 |
0.30 |
0.60 |
||
|
251-500 |
0.40 |
0.80 |
||
|
501-1000 |
0.50 |
1.10 |
||
|
> MI |
0.60 |
1.20 |
||
Ut a Quotation autem

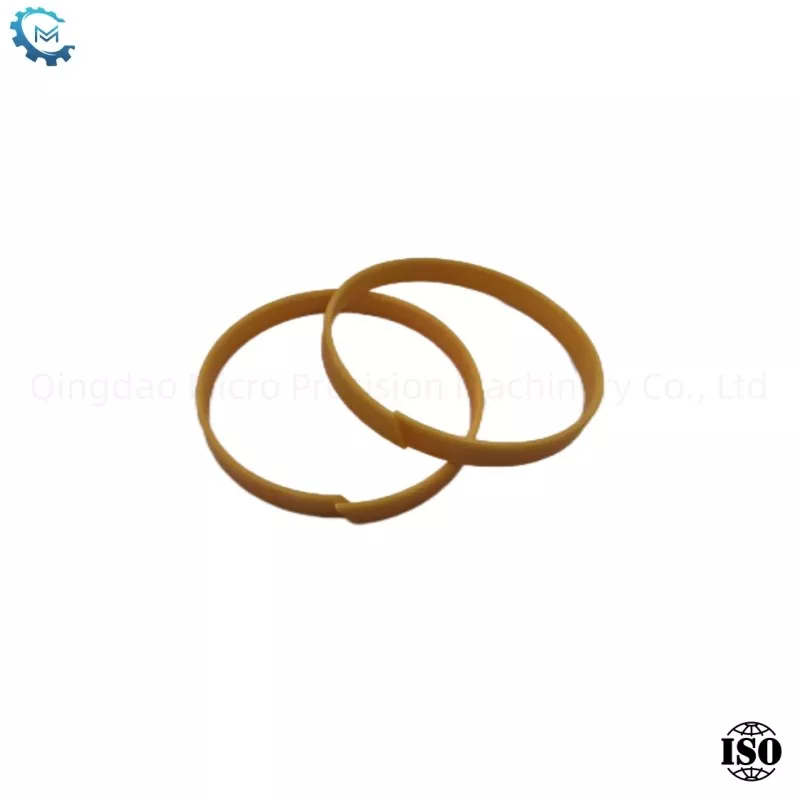

Repleti ptfe
Features
Non-Metallic Guide balteus ad Piston virga, available in parata, ut-usu et in-site secans types
▶Materia
-Wear-repugnans circulum est PTFFe Aeris
▶Performatio
Non-Metallic Guide elementum pro Piston virga, etiam idoneam ad ISO10766 Latin.
-Metal / plastic materia HYMENAEOS prohibet "Blocking" et "captio" limited onus capacitatem (materia);
-Low friction, non baculus-lapsus phaenomenon; idoneam enim siccis currit operationem condiciones cum pauperibus lubricatae;
-Good vibration damping (radiale vibrationis);
-Can currere-in fieri aliena impudicitiis;
-Guide circulum anguli circumdatio prohibet extremum gap extrusionem "extrusionem" ad semi-circularis anguli in cavum sulcus.
> Working Conditions
Linear Found: ≤15 m / s;
Lond capacity: ≤15 N / mm2, ad XX ℃; <7.5n /, ad LXXX ℃; <5n / mm2, 120c. Maximum Operating Temperature: -60 ° C CL ~ + CL ° C (CC ° C.)

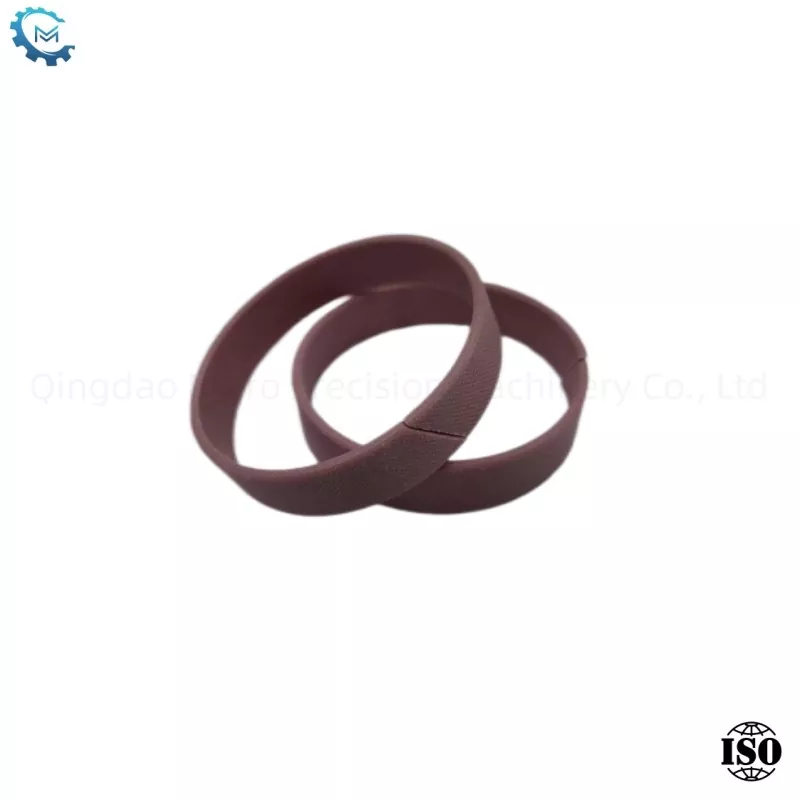

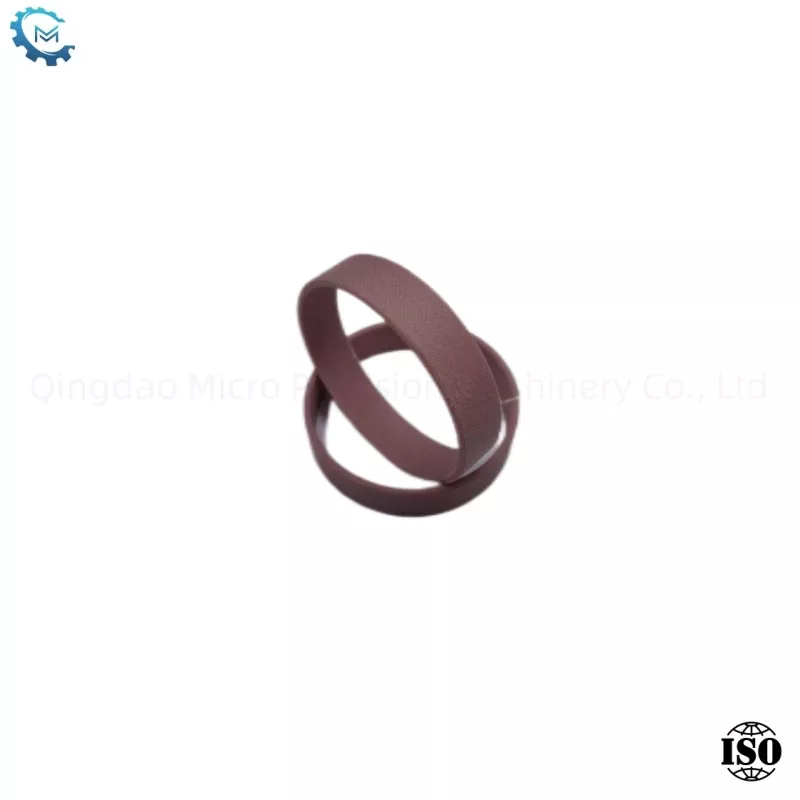

Phenolic panem
▶Features
Non-Metallic Guide elementum pro Piston.
▶Materia
-Wear, repugnans circulum est phenolic panno
▶Performatio
Usus est ut non-metallic dux elementum pro Piston virga, etiam idoneam ad IS010766 Latin.
-Metal / plastic materia HYMENAGS prohibet "Blocking" et "capcionem" Phaenomena;
-High onus afferentem facultatem, elastica antequam ad operationem temperatus
-Guide circulum anguli circumdatio prohibet extremum extrusionem "extrusionem" in semi-circularis anguli in cavum sulcus.
▶Operantes condiciones
Versus celeritas: <1M / s
Lond facultatem: <50n / mm2, infra 120c maximum working temperatus: -60 ℃ + CXX ° C
Hot Tags: Dux Ring of MPMDS Series, Sina, Manufacturer, elit, Factory, Dura, Cheap
